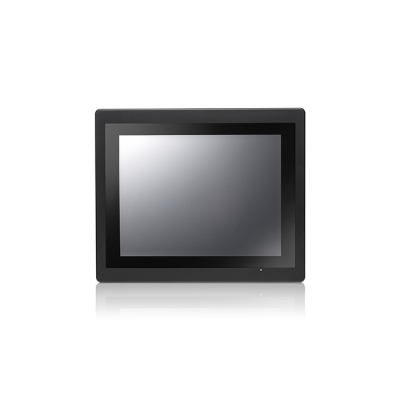

WLP-7J20 Elkhart Lake 15" Wide Temp 1000 nits
Specification
| Model | WLP-7J20-15H | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset | Intel® Elkhart Lake SoC Processors x6413E, 4C, 1.5 GHz (Burst Frequency is 3GHz), 9W | ||
| Graphic | Intel® Gen 11 Graphics Engines | ||
| Memory | Dual channel support 3200MHz DDR4 SODIMM socketx2, up to 32GB | ||
| TPM | TPM2.0 (On Board IC) | ||
| OS Support | Windows 10 (64bit), Windows 11 (64bit) | ||
| Storage | 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism) | ||
| Expansion | 1 x M.2 (Key E, 2230) with PCIe x1 and shared USB2.0 for Wireless x1 | ||
| Display Size | 15”, 4:3 | ||
| Display | 1024 x 768 (XGA), 16.7M colors, 160(H) / 160(V), 1000 nits, CR: 700 : 1 | ||
| Touch Screen | Full Flat Res. Touch / Light Transmission: 80 ± 5% / Hardness: >=3H / Life: 35M times Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: >=7H / Life: Knock 100M times |
||
| I.O. Ports | |||
| USB | 3 x USB3.2(Gen 2), 1 x USB2.0 | ||
| COM | 2 x RS232 (COM1 disable 5V/12V selection, COM3), 1 x RS232/422/485 (COM2) | ||
| LAN | 2 x Gigabit LAN | ||
| Audio | 1 x 3.5mm phone jack connector (supports Line-out by default, converts to Mic in or Line in) | ||
| Video | 1 x HDMI 1.4b, 1 x DP1.2 | ||
| Control Keys | Rear bottom: Power on /off | ||
| Mechanical and Environmental | |||
| Cooling | Fanless | ||
| Power Input / Consumption | DC12V, DC-In connector x 1 (Jack with locker) | ||
| Power Adapter | External, AC 100 ~ 240V / 47 ~ 63 Hz / DC output 12V | ||
| Temperature | Operating Temperature: 12V DC Input -20~60℃ by SSD (IEC60068-2-56, air flow cooling) Storage Temperature: -20~65℃ |
||
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing | ||
| IP Rating / Housing | IP66 at front / Front bezel is Aluminum, others are SECC with black coating | ||
| Dimensions (Net) | 398 (H) x 330 (V) x 72 (T) | ||
| Weights (Net) | 6.4 kg | ||
| Mounting | Panel mount / VESA (75x75) | ||
| Certification | CE (EMC) / FCC-B / VCCI | ||
