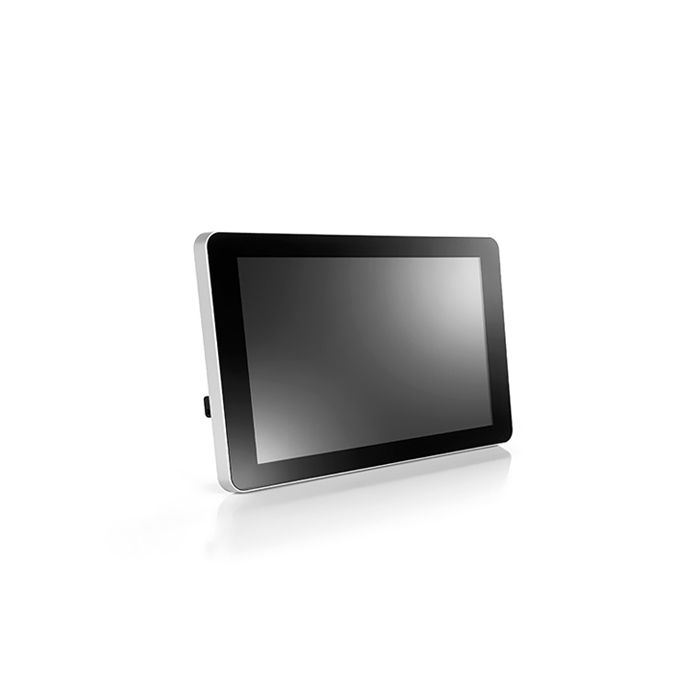

Product Name : WMP-109 N97 Processor 10"
Product Description
Solutions
  • Four Cores Intel® N97 Processor
  • Industrial HMI Office Level EMC class B Certified
  • Medical Grade UL/MDR Certification By Request
  • Door Display with PoE for Customization
  • Equipped with Power Button for User Friendly
  • Fanless Type under 0~50℃ Operation Temp.
  • Compact Size Ideally for Limited Space Installation
  • TPM 2.0 On Board
Inquiry
Specification
ModelWMP-109
Main System
CPU / Chipset Intel® Alder Lake-N N97 Processor, 1.1GHz (up to 3.6G Hz), Max. TDP 6 W
Graphic Intel® Integrated UHD Graphics
RAM
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
OS Support Windows 10 IoT 2019 LTSC (64bit) / Windows 11 IoT LTSC
Storage  1 X M.2 M-key 2280 SSD, Defaulted NVMe. 128G
Expansion 1 x M.2 E-key 2230, 1 x Full Size Mini-PCIe w/SIM slot
Display Size 10.1"
Display 1280x800, 16.7M colors , 170(H) / 170(V), 350 nits (Typ. Center point), CR:800 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel /  Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45°
I.O. Ports
USB 2 x USB 3.2 Gen 2, 2 x USB 2.0
COM 1 x RS232/422/485 (default is RS232, RS422 and RS485 are by manually change jumper setting on mother board)
LAN RJ45 X 2
Audio Line Out, 3.5mm Phone Jack x 1, 1.5W Speaker x 1
Video Out 2 x HDMI
Control Hot Key (R to L) Rear Bottom: Power on /off, ATX Switch
Mechanical and Environmental
Cooling Fanless
Power Input 1 x 12~36 VDC-in
Power Adapter External, 63 Watts, Universal 100 ~240V AC in, 12V DC Out
Temperature Operating Temperature: 0~50℃ (IEC60068-2-78) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side) / Silver Bezel / Black Cover
Dimensions (Net:mm) 263.3 (H) x 171 (V) x 35.7 (T)
Weights (Net) 1.27 KG (approximate, w/o power adapter)
Mounting Chassis, VESA (75x75)
Certification CE/ FCC/ VCCI Class B, Canada ICES-003, CE EN60601-1-2
Options & Customization

Major Options

Options
1. 802.11 ac/a/b/g/n WLAN + Bluetooth Module (not coexist with PoE) (802.11 ac/a/b/g/n WLAN antenna at top, bluetooth 5.0 antenna at I/O side)
3. Ethernet RJ45 male to female right angle adapter x 2
4. Operation system: Windows 10 IoT 2019 LTSC (64bit) / Windows 11 IoT LTSC
5. 128G M.2 SSD storage
6. 8G RAM module

Customization
1. Webcam
2. RFID
3. COM x 2 (total)
4. Panel mount kit
5. White rear cover
6. PoE function follows IEEE802.3at (30 Watt), supports wake on LAN function
    (not coexist with wireless, COM port, remove AC-DC power adapter and DC input connector)
7. In wall mount bracket
8. 3G/4G module
9. Car ignition power control
