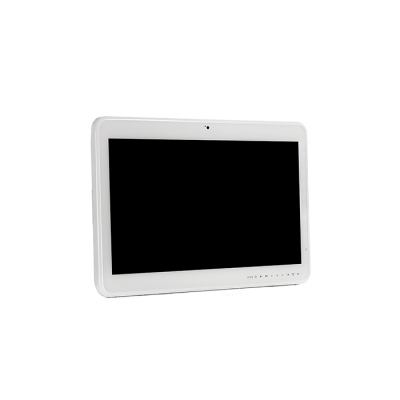

WMP-22J Fanless Whiskey Lake 22"
Product Introduction
Best Suit for Non-Powered Medical Carts
Up to Three Hot Swappable Batteries
These medical cart panel PC with hot swappable batteries are designed to be used with non-powered carts. Hot swap batteries provide up to 8-10 hours of up time on a single charge. Wincomm innovated i-Control intelligent management SW to optimize CPU, Thermal, and Power performance to utilize computing performance to secure medical professionals using safty in any condition while under mobile medical cart applications.
- Anti-MRSA Housing stands up to Chemical Disinfection
These medical cart computers have an special antimicrobial housing, including touch panel, to battle surface contamination (MRSA), an IP65 rated sealed front bezel making it easy to clean and disinfect. - Global Latest UL/cUL 60601-1 and IEC60601-1 & 60601-1-2 Medical Certifications (MDR Ready)
Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards. - 8th Gen Intel Core CPU
Our medical cart computers WMP-J series offer the 8th generation Intel Core i3/i5/i7 processor series. - Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
- FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
- 5M Webcam & RFID antenna & TPM 2.0 & Display Interface for up to 2, and HDMI Video-In
- USB 3.1 Gen II X 4, Optional USB X 2
- Expansion PCIx4 for Optional Video Capture Card, Vision Acceleration Card Support
- Optional Light Sensor for Auto-Dimming to be Friendly During Ward Round
- Optional DICOM Part 14 Module
Hot Swappable Batteries x 3 – normal operation time over 8-10 hours for nursing cart usage
Hot Swappable Batteries Designed by Wincomm Featured:
- Compatible with all WMP G/H/J series
- Battery Indicator LED light
- Medical Grade Certification with WMP G/H/J series
- Non-stop Swappable Battery architecture
- High Electricity Current Battery to fulfill High Medical Image Process
FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety
FHD MVA Panel Featured:
Consistently Clear and Precise Images
- Wide view angle: 178(H)/178(V)
- High CR, 3000:1
- Up to 16.7M Colors w/RGB 8 bit
- 16:9, LED Backlight
Product Outlook & Friendly Hot-Key Design
30 Watt Power Output for External Device
Specification
| Model | WMP 22J IP0A (STD) | WMP 22J IP0B (ISO) |
|---|---|---|
| Main System | ||
| CPU / Chipset | FCBGA1528 Intel® Whiskey Lake Core i7/i5 processor (15W Max.) Optional Vpro by Core i7/i5 CPU/ SoC | |
| Graphic | Intel® integrated HD Graphics 620 | |
| RAM | DDR4 Dual-2400MHz, SO-DIMM socket, non-ECC, up to 64GB | |
| OS Support | Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC | |
| Storage | 1 x M.2 NVMe SSD (M Key 2242/2260/2280) PCIex4, 1 x 2.5” SSD/HDD w/ doggy door | |
| Expansion | 1 x PCIex4, 1 x M.2 E Key Optional Network Interface: 802.11 ac/a/b/g/n WLAN + Bluetooth module |
|
| Display Size | 21.5” wide TFT-Color LCD (16:9) | |
| Display | 1920 x 1080 (Full HD), 16.7M colors (Ture,8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ) | |
| Touch Screen | Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 87% / Hardness: ≥7H pencil, pressure 765g/45° / Life: 50000 | |
| I.O. Ports | ||
| USB | 4 x USB3.1 gen II | 4 x USB3.1 gen II, 1 x ISO USB 2.0 |
| COM | 1 x RS232/RS422/RS485 1 x RS-232 |
1 x ISO RS232/RS422/RS485 1 x ISO RS-232 |
| LAN | 2 x Gigabit RJ45 | 2 x Gigabit RJ45, 1 x ISO Gigabit RJ45 |
| Audio | 2 x 3.5mm phone jack connector (Line-out, Mic-In) | |
| Video Out | 2 x DP & 1 x HDMI video-in | |
| Reading light | Light bar x 2 (at housing bottom side) | |
| Control Hot Key (R to L) | Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off, Clean Me, Function Key | |
| Mechanical and Environmental | ||
| Cooling | Fanless Design with External Heatsink | |
| Battery Pack | Optional 3 x DR-202 Series, Lithium-ion Battery w/ Hot-Swappable Design | |
| Power Input & Adapter Spec |
DC-In x 1, DC 14-24V input/ AC input 100~240V / 47 ~ 63 Hz / DC output 18V, 100W (Optional 180W) | |
| Temperature | Operating Temperature: 0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃) / Storage Temperature: -20~60℃ | |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | |
| IP Rating / Housing | IP65 (Front Side),IPX1 for whole system / Front: Full flat design/ Touch (standard)/ Glass( customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing | |
| Dimensions (Net) | 541.0mm(H) x 413.2mm(V) x 56.0 mm(T) | |
| Weights (Net) | 7.0 kg (w/o power adapter/battery pack) | |
| Mounting | Optional Stand, VESA 100 | |
| Certification | CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) ISO 14971 / IEC62133 |
|
Options & Customization
