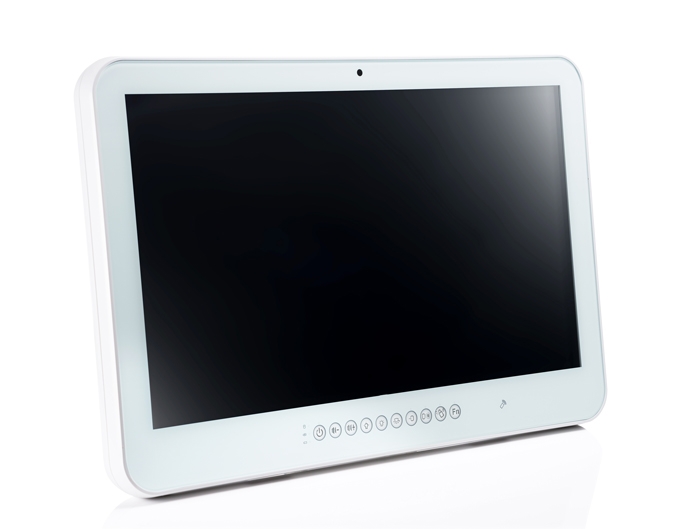

Product Name : WMP-24ND Comet Lake 24"
Product Description
Solutions
  • Intel® 10th Gen Core™ 35W Max.
  • 23.8" FHD 1920x1080 MVA LCD panel
  • P-Cap Multi-Touch Screen
  • Anti-Bacteria(MRSA) Plastic Housing
  • Fast Booting w/M.2 NVMe SSD
  • PCIex16 Expansion Card Up to 60W
  • Optional Full HD capture card
  • Optional DICOM Part 14 Compliance
  • Optional ISO 4KV LAN/COM/USB Module
  • Watch Dog Timer (WDT)
  • Defaulted OS Recovery
See: Medical Point of Care All In One Touch Panel PC WMP-24MD

eNews: Leading Performance Point of Care AIO PC WMP-24MD/ND Series
eNews: 6th generation Skylake platform Medical grade touch Panel PC WMP-24F/22F/19F

Inquiry
Product Introduction
Medical AIO Panel PC with 10th Gen. Comet Lake Core CPU

Integrated with Built-in battery, Non-Stop Operation

These medical all in one panel pc are designed to fulfill versatile clinical applications, incouding EMR, anesthesia applications, operating room environments, and patient charting. One of our most powerful computers for hospitals that want the best in medical hardware.

  • Anti-Bacteria (MRSA) Housing stands up to Chemical Disinfection
    These medical cart computers have an special antimicrobial housing to battle surface contamination (MRSA), an IP65 rated sealed front bezel and an IPX1 back cover making it easy to clean and disinfect.
  • Global Latest UL/cUL 60601-1 and IEC60601-1 Medical Certifications
    Medical grade, and certified to be safe for near patient use. These computers were designed from the ground up to meet global medical safety standards.
  • 10th  Gen Intel Core CPU
    Our medical panel pcs offer the Comet Lake 10th generation Intel® Core i3/i5/i7 processor series.
    1. Support Intel® Vpro Technology by CPU suit for intelligent remote control SW management,
    2. FHD video real-time streaming to support hospital theatre on real-time surgical imaging needs.
    3. Webcam & RFID antenna & TPM 2.0 & Display interface for up to 2

FHD, MVA panel, True 8 bit-Visual Clearance to Secure Medical Image Safety

proimages/seefeature/pic-03.jpg

FHD MVA Panel Featured:

Consistently Clear and Precise Images

Product Outlook & Friendly Hot-Key Design

proimages/seefeature/pic-04.jpg
proimages/seefeature/pic-06.jpg

Optional ISO –COM/LAN/USB to avoid expansive equipment damage

4KV Isolated Interface:

  • Signal and voltage feedback loops are also eliminated, assuring no interference between the Panel PC and versatile medical equipment devices, and that patient safety is not compromised due to high voltage issues.
Specification
ModelWMP 24ND  IP0A (STD)WMP 24ND  IP0B (ISO)
Main System
CPU / Chipset Intel® 10th Gen. Core i7/i5/i3/Pentium/Celeron Processor (35W Max.) / Q470E Chipset
Graphic Intel® integrated UHD Graphics
RAM 2 x 260-pin SO-DIMM, Dual Channel DDR4 2933 / 2666 / 2400 MHz, up to 64GB
OS Support Optional Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Storage 1 X M.2 (M Key, 2280) w/PCIex4 & SATA3 for SSD, 1 X 2.5” SATA3 HDD/SSD drive bay
Expansion 1 X M.2 E Key 2230, 1 x M.2 (B/M Key 2242/2260/2280) w/PCIe, 1 x PCIex16 (60W Max.)
Display Size 23.8” wide MVA Diagnostic LCD (16:9)
Display 1920 x 1080 (Full HD), 16.7M colors (MVA, 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: ≥ 84% / Hardness:≥ 7H pencil, pressure 765g/45° / Life: 50000 times
I.O. Ports
USB 4 x USB3.2 Gen II 4 x USB3.2 Gen II, 1 x 4KV ISO USB2.0
COM 1 x RS232, 1 x RS232/RS422/RS485 1 x 4KV ISO RS232, 1 X 4KV ISO RS232/RS422/RS485
LAN 1 x RJ45 10/100/1000 Mbps Intel® I219LM (AMT/Vpro)
1 x RJ45 10/100/1000/2500 Mbps Intel® I225V
1 x RJ45 10/100/1000 Mbps Intel® I219LM (AMT/Vpro)
1 x RJ45 10/100/1000/2500 M bps Intel® I225V, 1 x ISO RJ45 1Gbps
Audio 3.5mm phone jack connector * 2 (Line-out, Mic-In)
Speaker output 5W x 2, Microphone built in x 1
Video
1 x DP1.2/DP++ video output, 1 x HDMI 1.4a video output,
1 x HDMI-video input
Reading light Light bar x 2
Control Hot Key (R to L) Power // Audio adjustment // brightness // Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
Mechanical and Environmental
Cooling Smart Fan
Power Input DC-In x 1,  DC 9~32V input
Power Adapter AC input 100 ~ 240V /47 ~ 63 Hz /DC output 24V/ 180W (External)
Temperature Operating Temperature: 0~35℃ (chamber) / Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing IP65 (Front Side), IPx1 whole system / Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net) 606.0mm (H) x 398.mm (V) x 65.6mm (T)
Weights (Net) 10.8 kg
Mounting Optional Stand, VESA 100 x 100
Certification CE: EN 60601-1-2:2015(V4.0)
ISO 14971 / IEC62133 (By Project)
EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance (By Project)
VCCI: 2016-11, Class B
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1) (By Project)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) (By Project)
Options & Customized

Major Options

Add On Parts
1. WLAN + Bluetooth Module (Wi-Fi 5 / Wi-Fi 6)
2. Auto Focus 5M Pixel Webcam Module
3. M.2 2280 Module
4. RFID (13.56MHz)
5. TPM 2.0 Module
6. Full HD Capture Card or 4K SC710N1 12G SDI Capture Card
7. Smart Card Reader at Side or CAC / PIV Reader (FIPS-201) / or DVD Drive
8. 2.5” SSD(can’t co-exist with DVD and smart card reader)
9. Equipotential Terminal Pin
10. AG Film (Can’t Co-exist with DICOM Module)
11. DICOM Part 14 Compliance (Max. Error Ratio Less than 20%, Optional Order Configuration)
12. Integrated battery 28Wh x 1 (100W max.)
13. COM 3/4
14. USB 5/6 (USB 2.0)

Power Cable
1. 2M DC Extension Cable
2. Cable Clean IO Cover

Optional kits
1. Anti-bacteria Stand
2. VESA Wall Mount

Customized
1. Tempered Glass
2. 4K2K UHD display by different configuration / MB with eDP.(no video-in)
