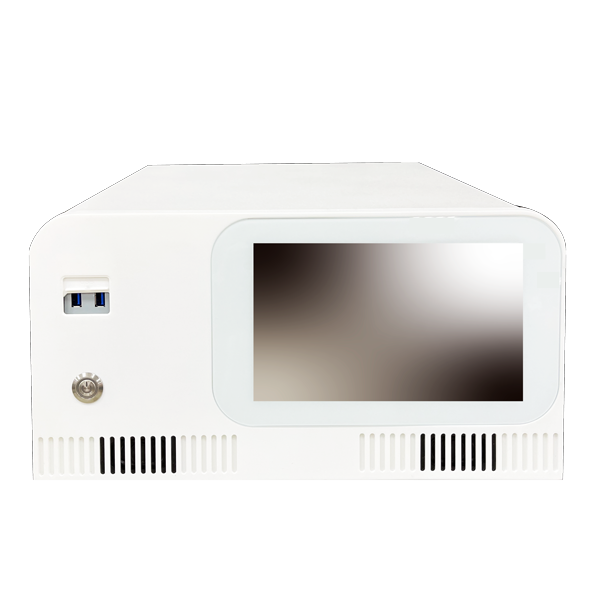

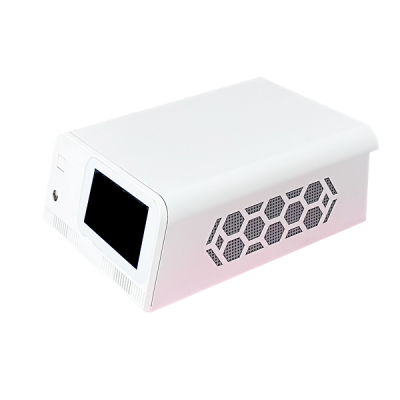

WPC-789-PSI Medical Edge AI Server
Specification
| Model | WPC-789-PSI | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset |
Intel® 12th Generation Intel® Core i9/i7/i5 Processor, 65W Max.
Intel® W680 Express Chipset
|
||
| Graphic | Intel® UHD Graphics 770 | ||
| RAM | Four 3200 MHz DDR4 Long-DIMM socket support dual Channel, ECC/non-ECC, up to 128GB | ||
| OS Support | Windows 10 (2021-LTSC) (64bit), Windows 11 (64bit) | ||
| Storage |
1 x M.2 (Key M, up to 25110) w/PCIex4 Gen4 for SSD up to 1TB;
1 x M.2 (Key M, 2242/2260/2280) w/PCIex4 Gen3 for SSD up to 1TB;
1 x 2.5” 7mm SATA3 SSD, up to 2TB
|
||
| Expansion |
1 x M.2 (Key E, 2230) for Wireless, 1 x M.2 (Key B, 3042/3052)
1 x SIM socket connect to M.2 Key B 2 x PCIe Gen4 Slots (PCIE1/PCIE3: single at x16(PCIE1)dual at x8 (PCIE1) / x8 (PCIE3)) / (PCIE1: Support riser card x8/x8), PCIex4 (Gen4)* x 2)
|
||
| I.O. Ports | |||
| USB |
Front: 2 x USB 3.2 Gen1 (W/Cover)
Rear: 5 x USB 3.2 Gen2, 1 x USB 3.2 Gen2 (20G) Type C
|
||
| COM | Rear: 2 x RS232/RS422/RS485 | ||
| LAN | Rear: 3 x RJ-45 (Intel® I225LM supports AMT/Vpro) | ||
| Audio | Rear: 3.5mm phone jack (Line in, Line out, Mic in) | ||
| Video Out | Rear: 1 x DP1.4a, 1 x HDMI 2.0, 1 x VGA | ||
| Control Hot Key (R to L) | Rear: Power on/ off Remote Power button (Phoenix 4 Pin connector or DB 9 Female) | ||
| Mechanical and Environmental | |||
| Cooling | Smart Fan, Noise less than 30dB at 25℃ (ambient temp.) | ||
| Power Input / Consumption | ATX PWR (24+8-pin) | ||
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz / 900W | ||
| Temperature | Operating Temperature : 0~40℃(0~50℃ By Project) / Storage Temperature : -20~60℃ | ||
| Humidity | Operating & Storage: 20 ~ 90%, non-condensing | ||
| Housing | SECC with hospital white painting | ||
| Dimensions (Net) | 319 x 158.4 x 435.94 (mm) | ||
| Weights (Net) |
TBD kg
|
||
| Certification |
CE: EN 60601-1-2 (V4.1), EN 60601-1 (V3.2, by project)
VCCI: 2016-11, Class B (PSU with PSE -TBD)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.2) by project
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2) by project
ISO 14971 by project
|
||
