Intel® 12th Gen Alder Lake Fanless Stainless Panel PC for Industrial Application | Wincomm WTP-9H66 Model 22-inch & Wide Temp Operation Capability

Additional files

Wincomm_WTP-9H66-22W_Data_Sheet__v1.1.pdf Wincomm_Full_IP_Series_Stainless_Steel_Sector_Brochure_A4.pdf

Specification

Model	WTP-9H66-22W
Main System
CPU / Chipset	Intel® 12th Gen Alder Lake-P MCP Processors, 15 W / Soc
Graphic	Intel® Gen 12 Graphics
RAM	Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB
TPM	TPM2.0(On Board IC)
OS Support	Optional Windows 10 (64 bit) / Windows 11 (64 bit)
Storage	1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism) 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 (Gen4) for SSD
Expansion	1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G 1 x SIM socket connected to M.2 key B 1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless
Display Size	21.5” 19:6
Display	1920 x 1080(Full HD), 178(H) / 178(V), 250 nits, CR:1000 : 1
Touch Screen	Full Flat Resistive touch / Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M times / Touch Mode: Normal mode Full flat P-Cap touch / Light Transmission: ≧86% / Hardness:≧7H / Lifetime: 100M times / Touch Mode: Normal / Glove / Water mode

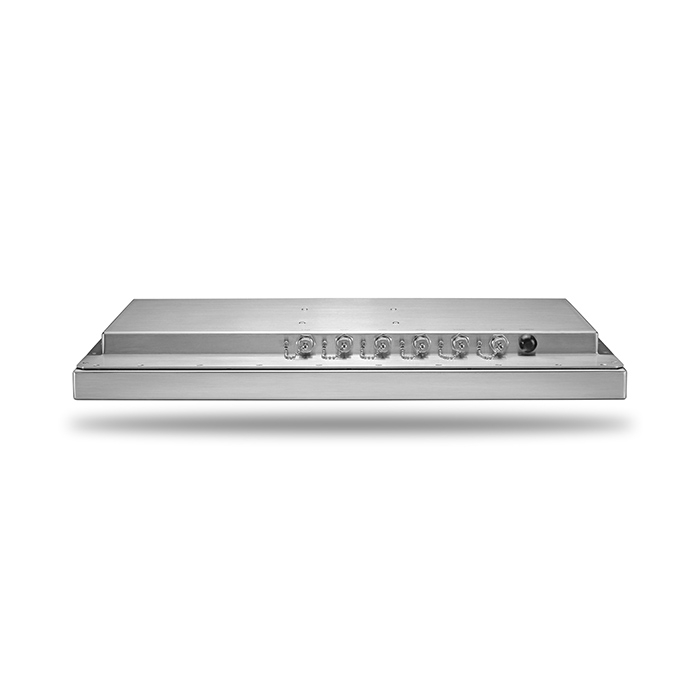

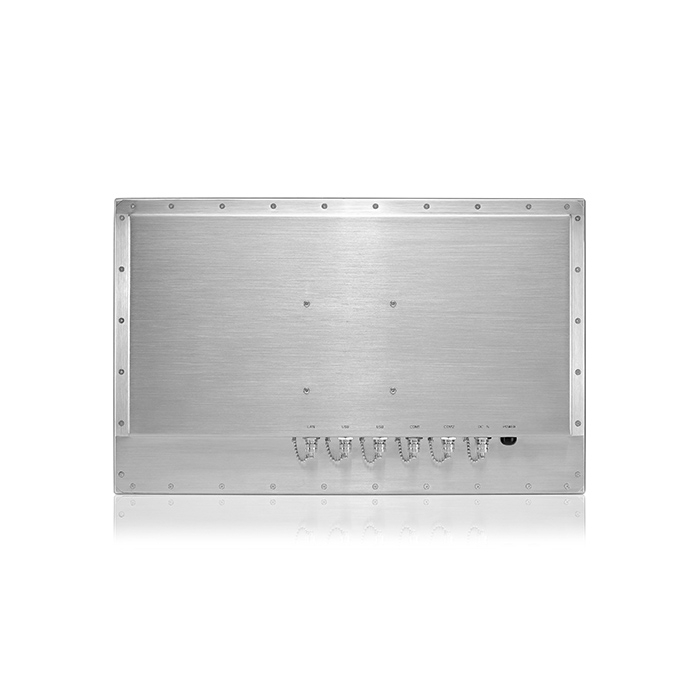

I.O. Ports
USB	1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM	2 x M12 8pin for COM 1 & COM2(RS-232/422/485)
LAN	1 x M12 8pin for LAN 1
Audio	N.A.
Video	N.A.
Control Key	Rear bottom: Power on/off ; Brightness up/down
Mechanical and Environmental
Cooling	Fanless
DC in	1 x DC-In connector, DC 12~28V
Power Adapter	AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68
Temperature	Operating Temperature 12V DC Input -20C~60℃ (IEC60068-2-56, air flow cooling, SSD) Storage Temperature -20~60℃
Humidity	Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing	IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net)	557 mm (H) x 348.5 mm (V) x 58.5 mm (T)
Weights (Net)	12 kg
Mounting	VESA 100100, side mount (M62)
Certification	CE (EMC) / FCC-B / VCCI Class B

Options & Customized

Major Options

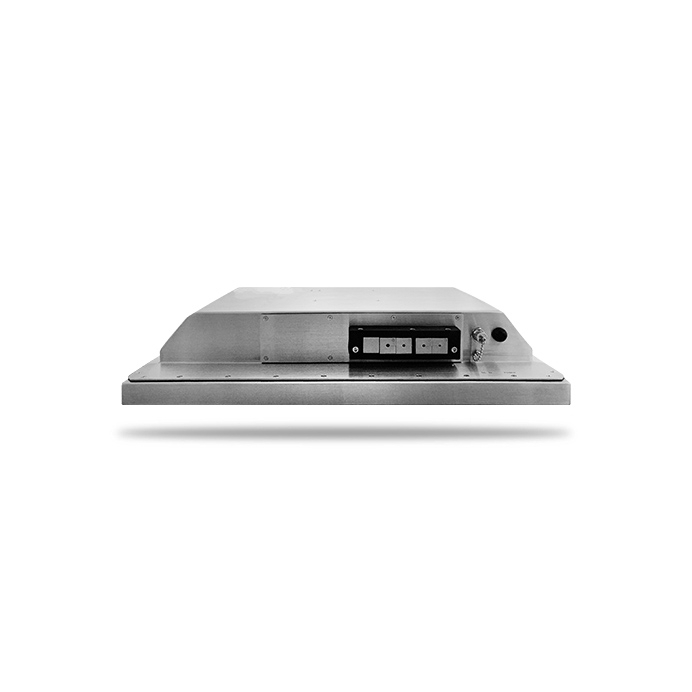

Options	1. Full flat PCT touch screen IP69K 2. IP67 (STD M12 type) 3. 2nd Storage for RAID 0,1 4. M.2 SSD (128G) 5. Wireless or Wireless and BT kit (easy clean and Robust Antenna) 6. 2 External LAN (USBx2, LANx2, COMx1) 7. Cable Gland External IO 8. SUS316 Enclosure 9. M12 (female) to M12 (male) DC power extension cable (2 meters length) 10. M12 (female) to stripped and tinned wires DC extension cable (1.2 meters length) 11. Barcode Reader (can’t coexist with RFID) 12. RFID (can’t coexist with Barcode reader) 13. Supports floor stand solution 14. 3W speaker(IP66) 15. Waterproof type C cable, cable length is 1 meter(male to male) 16. Wall mount 17. Table mount bracket (For Type C / RFID)
Accessory	1. Waterproof USB cable, cable length is 2 meters 2. Waterproof LAN cable, cable length is 2 meters 3. Waterproof COM cable, cable length is 2 meters 4. DC input cable
Customization	1. Sunlight readable optical bonding 2. Roof for UV protection and sunlight readable 3. 1000 nit high brightness LCD 4. COM + Power 5V or 12V 5. Intel i3-1215UE, DC, 3.3GHz 6. Intel i7-1265UE, DC, 3.5GHz 7. WDT AP/API 8. Stainless M12 connector

Drawing

proimages/products/WTP/WTP_22/WTP-9E66-22-DW.jpg

WTP-9H66 Alder Lake 22" Wide Temp
