WLP-7H20 Alder Lake 15"
Specification
| Model | WLP-7H20-15 | ||
|---|---|---|---|
| Main System | |||
| CPU / Chipset | Intel® Alder Lake-P MCP Processors, 15W | ||
| Graphic | Intel® Gen 11 Graphics | ||
| Memory | Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB (32GB per DIMM) | ||
| OS Support | Optional Windows 10(2019-LTSC) (64bit), Windows 11 (64bit) | ||
| Storage | 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism) 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 for SSD | ||
| Expansion | 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G 1x SIM socket connected to M.2 key B 1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless | ||
| Display Size | 15”, 4:3 | ||
| Display | 1024 x 768 (XGA), 16.2M colors, 160(H) / 160(V), 350 nits, CR: 800 : 1 (Typ) | ||
| Touch Screen | Full flat resistive touch panel / Light Transmission: 80 ± 5% / Hardness: >=3H pencil / Life: 35M times Full Flat Projective Capacitive Touch Panel / Light Transmission: >=86% / Hardness: >=7H pencil / Life: 100M times |
||
| I.O. Ports | |||
| USB | 2 x USB 2.0, 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C (Support DP1.4a display output, power output 5V/3A) | ||
| COM | 2 x RS-232/422/485(COM1, COM2), 1 x RS-232(COM3) | ||
| LAN | 2 x RJ-45 2.5 Gbps | ||
| Audio | 2 x 3.5mm phone jack connector(Line-out, Mic-in) | ||
| Video | 2 x HDMI 2.0b | ||
| Control Keys | Rear bottom: Power on /off | ||
| Mechanical and Environmental | |||
| Cooling | Fanless | ||
| Power Input / Consumption | DC12~28V input | ||
| Power Adapter | External, 60 watts, 100 ~240V AC in, 19V DC out, 5.26A | ||
| Temperature | Operating Temperature: 19V DC Input 0~50℃ by SSD (IEC60068-2-56, air flow cooling) 19V DC Input 0~40℃ by HDD (IEC60068-2-2, natural cooling) Storage Temperature: -20~65℃ |
||
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing | ||
| IP Rating / Housing | IP66 at front, IK05 | ||

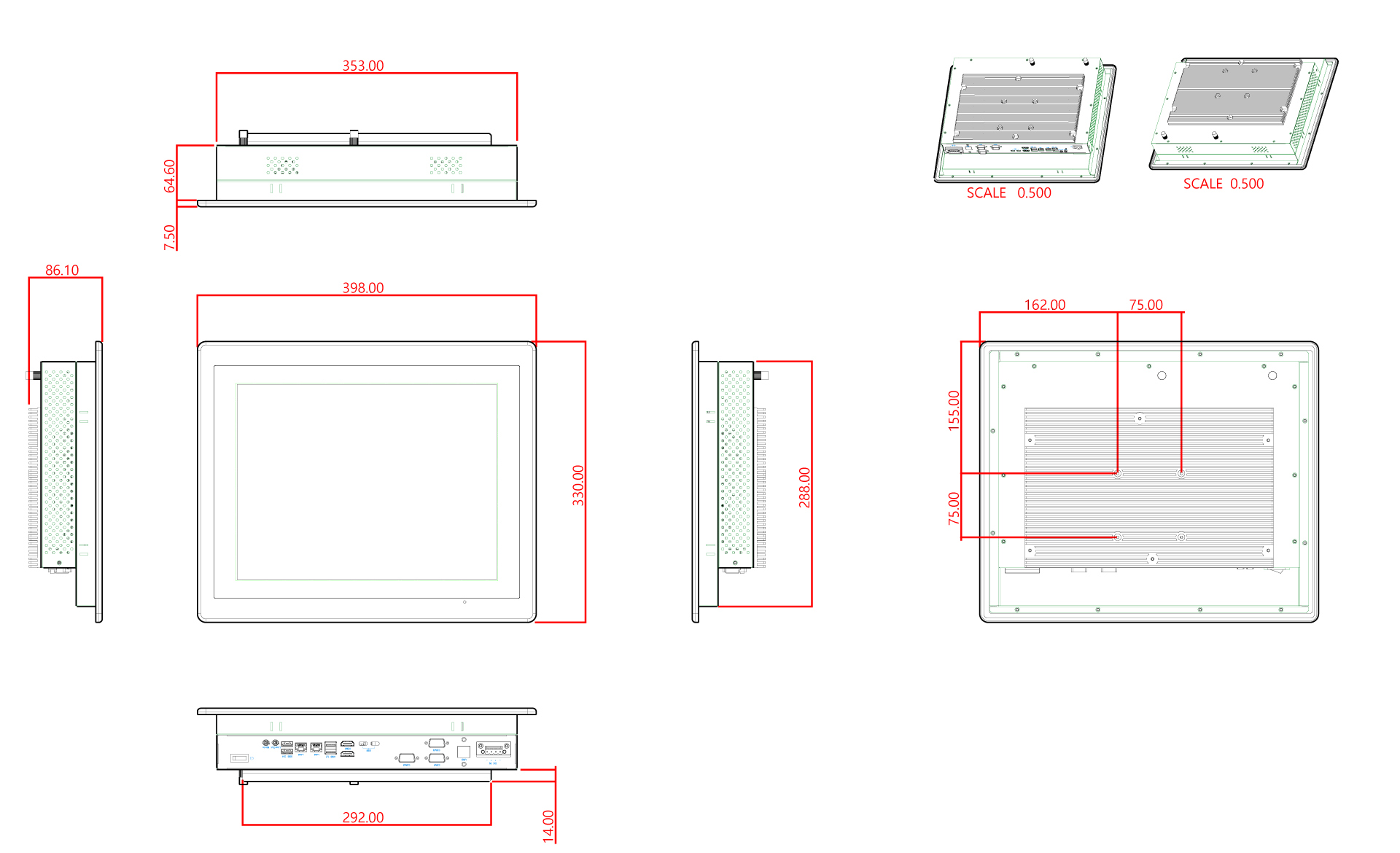

| Dimensions (Net) | 398 (H) x 330 (V) x 86.1 (T) | ||
| Weights (Net) | TBD kg | ||
| Mounting | Panel mount VESA (75x75) | ||
| Certification | CE/ FCC/ VCCI Class B | ||
