WTP-9H66 Alder Lake 22" Wide Temp

Full IP Wide Temp Stainless Steel Panel PC Equipped with Intel® 12th Gen Alder Lake-P MCP Processors
Stainless Steel Chassis Touch Panel PC with Intel® 12th Gen Alder Lake-P MCP Processors
Full IP Wide Temp Stainless Steel Panel PC
Stainless Steel Chassis Touch Industrial Panel PC
Stainless Steel Panel PC with Anti-Corrosion Enclosure Powered by Intel® 12th Generation Processor
IP66/69K Stainless Industrial Panel PC
產品名稱 : WTP-9H66 Alder Lake 22" Wide Temp
產品描述
Solutions
  • Intel® 12th Gen Alder Lake Fanless Stainless Panel PC
  • 21.5” 1000nits Sunlight Readable LCD
  • IP66/69K Full Sealed with Anti-Corrosion Enclosure
  • Wide Temp. -20~60°C Operation Capability
  • Optional IP67 M12 Stainless Connectors
  • Optional Floor Stand Solution
  • 100% Waterproof Guarantee
  • CE, FCC, VCCI Certified
詢價
Specification
ModelWTP-9H66-22W
Main System
CPU / Chipset Intel® 12th Gen Alder Lake-P MCP Processors, 15 W / Soc
Graphic Intel® Gen 12 Graphics
RAM
Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB
TPM TPM2.0(On Board IC)
OS Support Optional Windows 10 (64 bit) / Windows 11 (64 bit)
Storage 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 (Gen4) for SSD
Expansion 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G
1 x SIM socket connected to M.2 key B
1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless
Display Size 21.5” 19:6
Display 1920 x 1080(Full HD),  178(H) / 178(V), 250 nits, CR:1000 : 1
Touch Screen Full Flat Resistive touch /  Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M times / Touch Mode: Normal mode
Full flat P-Cap touch /  Light Transmission: ≧86% / Hardness:≧7H / Lifetime: 100M times / Touch Mode: Normal / Glove / Water mode

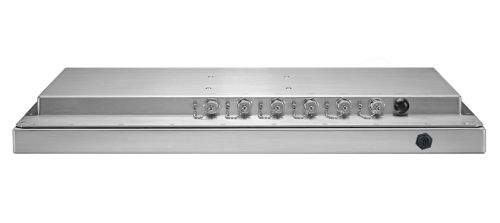

I.O. Ports
USB 1 x M12 8pin for USB 1/2, 1 x M12 8pin for USB 3/4
COM 2 x M12 8pin for COM 1 & COM2(RS-232/422/485)
LAN 1 x M12 8pin for LAN 1
Audio N.A.
Video N.A.
Control Key  Rear bottom: Power on/off ; Brightness up/down
Mechanical and Environmental
Cooling Fanless
DC in 1 x DC-In connector, DC 12~28V
Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68
Temperature
Operating Temperature
12V DC Input -20C~60℃ (IEC60068-2-56, air flow cooling, SSD)
Storage Temperature -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 557 mm (H) x 348.5 mm (V) x 58.5 mm (T)
Weights (Net) 12 kg
Mounting VESA 100*100, side mount (M6*2)
Certification CE (EMC) / FCC-B / VCCI Class B
Options & Customized

Major Options

Options
1. Full flat PCT touch screen IP69K
2. IP67 (STD M12 type)
3. 2nd Storage for RAID 0,1
4. M.2 SSD (128G)
5. Wireless or Wireless and BT kit (easy clean and Robust Antenna)
6. 2 External LAN (USBx2, LANx2, COMx1)
7. Cable Gland External IO
8. SUS316 Enclosure
9. M12 (female) to M12 (male) DC power extension cable (2 meters length)
10. M12 (female) to stripped and tinned wires DC extension cable (1.2 meters length)
11. Barcode Reader (can’t coexist with RFID)
12. RFID (can’t coexist with Barcode reader)
13. Supports floor stand solution
14. 3W speaker(IP66)
15. Waterproof type C cable, cable length is 1 meter(male to male)
16. Wall mount
17. Table mount bracket (For Type C / RFID)

Accessory
1. Waterproof USB cable, cable length is 2 meters
2. Waterproof LAN cable, cable length is 2 meters
3. Waterproof COM cable, cable length is 2 meters
4. DC input cable

Customization
1. Sunlight readable optical bonding
2. Roof for UV protection and sunlight readable
3. 1000 nit high brightness LCD
4. COM + Power 5V or 12V
5. Intel i3-1215UE, DC, 3.3GHz
6. Intel i7-1265UE, DC, 3.5GHz
7. WDT AP/API
8. Stainless M12 connector
Drawing
proimages/products/WTP/WTP_22/WTP-9E66-22-DW.jpg
